Discover the Corrugated Surf Paper Rigid Envelope Making Machine at our factory, crafted by Zhengding Machinery in China. We take pride in delivering top-notch machines renowned for their exceptional performance. This specialized device streamlines the production of rigid envelopes, utilizing corrugated surf paper. By automating key processes such as material feeding, folding, gluing, and shaping, this machine guarantees reliable results. Ideal for businesses seeking durable and protective packaging solutions, these rigid envelopes, crafted from corrugated surf paper, ensure optimal durability during shipping and storage. Join us now to explore the possibilities offered by this cost-effective solution.

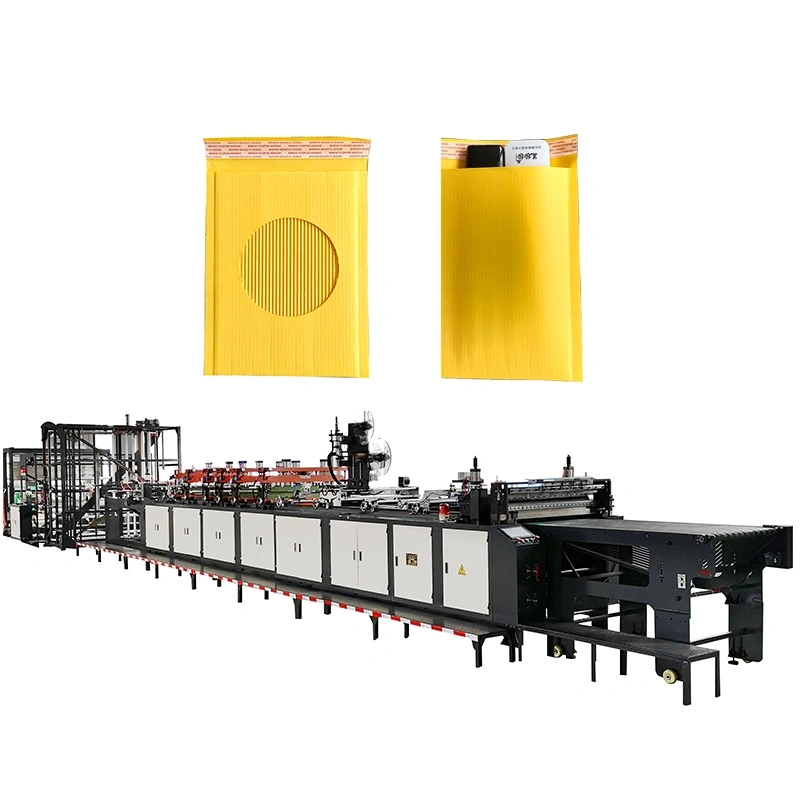

The Corrugated Surf Paper Rigid Envelope Making Machine is a specialized piece of equipment designed to manufacture rigid envelopes using corrugated surf paper. These envelopes are durable and provide excellent protection for various items during transit and storage. They are commonly used in industries such as packaging, shipping, and document storage.
The machine operates through a series of steps to convert corrugated surf paper into rigid envelopes:
1. Corrugated Surf Paper Feeding: The machine takes in rolls or sheets of corrugated surf paper as input. Corrugated surf paper consists of a corrugated middle layer sandwiched between two flat liner boards, providing strength and rigidity to the envelope.
2. Cutting and Creasing: The machine uses precision cutting blades and creasing tools to cut the corrugated surf paper to the required size and create fold lines for easy assembly.
3. Folding and Gluing: The cut corrugated surf paper is folded along the crease lines to form the rigid envelope's structure. Glue is applied to secure the flaps and seams, creating a strong and rigid bond.
4. Optional Printing and Labeling: Depending on the requirements, the machine can incorporate printing capabilities to add addresses, logos, or other information on the envelope's exterior. It can also apply adhesive labels or stickers.
5. Output and Stacking: The finished corrugated surf paper rigid envelopes are collected and stacked for further processing, packaging, or shipping.

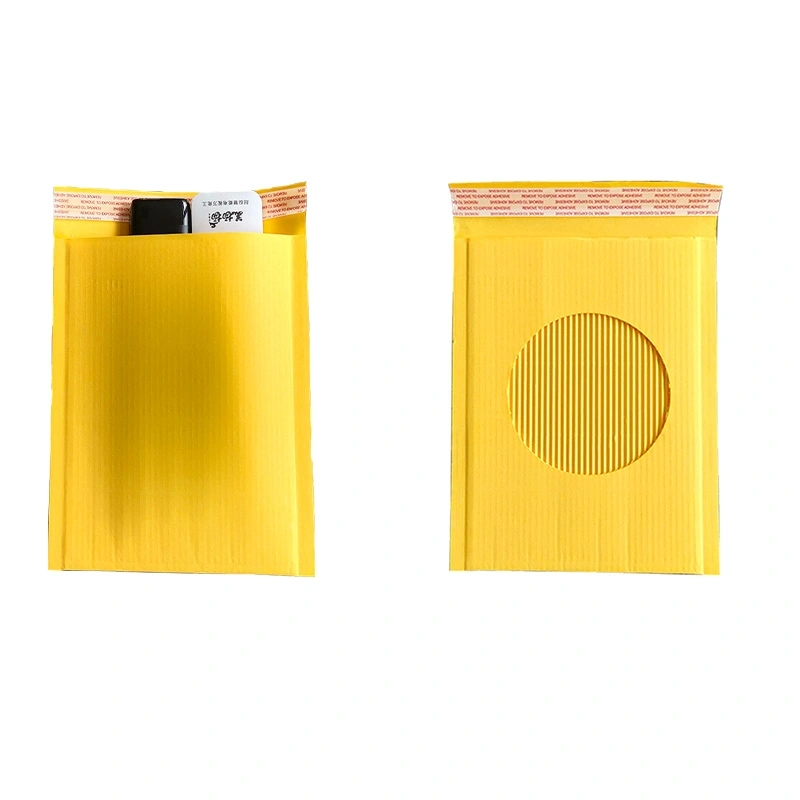

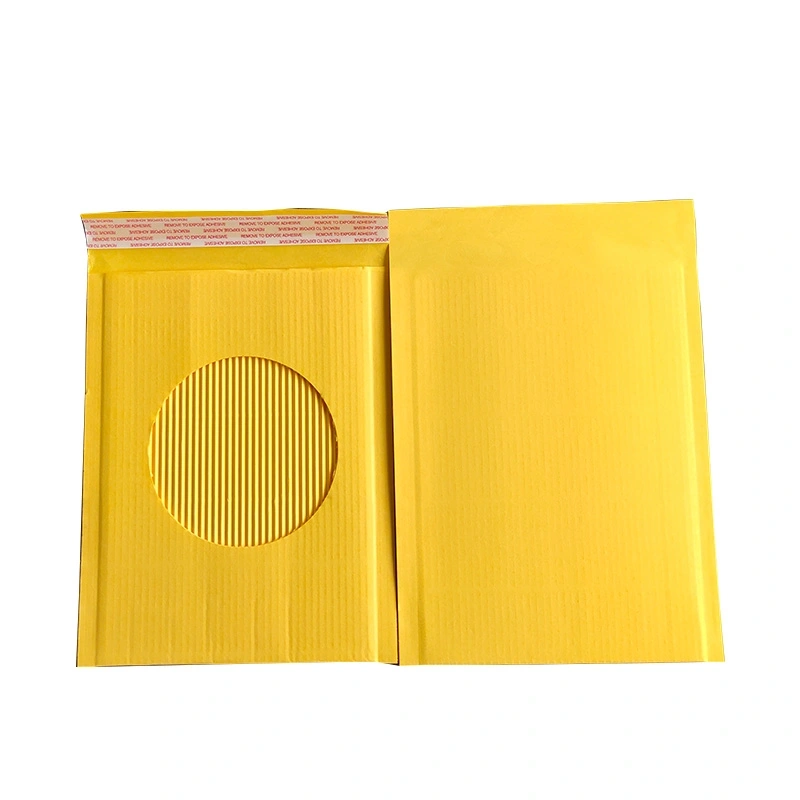

These rigid envelopes offer superior protection compared to standard paper envelopes and are ideal for shipping delicate or valuable items, ensuring they reach their destination intact. They are also an eco-friendly option as they are made from recyclable materials. The Corrugated Surf Paper Rigid Envelope Making Machine plays a significant role in providing reliable and sustainable packaging solutions for businesses in various industries.
Model No.: KPEB-700-CP
Brand: ZHENGDING
Applicable industry: Manufacturing Plant
Out-of-warranty service: Video Technical Support, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets): None
Showroom location (in which countries are there sample rooms overseas): None
status: New
Machine type: Bag Forming Machine
Bag material: Paper
Programming control: Yes
place of origin: China
warranty period: 1 Year
Core selling point: Easy To Operate, Long Service Life, Remote Control, Flexible Manufacturing, Multifunctional
Marketing type: New Product 2020
Mechanical test report: Provided
Video factory inspection: Provided
Core component warranty period: 1 Year
Core components: Motor
Warranty: 1 Year
Condition: New
Showroom Location: None
Material: Paper
Computerized: Yes
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Warranty Of Core Components: 1 Year
Key Selling Points: Easy To Operate
Place of Origin: Zhejiang, China
Max Speed: 70pcs/Min
Applicable Industries: express industry
Brand Name: zhengding
Dimension(L*W*H): 1900*2600*2300
Mechanical execution speed: 25-70 PCS/min
Maximum bag-making width (bag height): 600mm (including envelope tongue)
Working voltage: 380V50HZ, three-phase and four-wire
Maximum bag length (bag width): 500mm
Effective unwinding width: 1250mm
Effective unwinding diameter: 1200mm
Mechanical weight: 6000KG | Dimensions: 1900mm/2600mm/2300mm(L/W/H) |
Power backup: 30KW | After-sales Service Provided: Field installation, commissioning and training |
Local Service Location: None | Model Number: zd-500 |
Scope of application: single layer corrugated paper roll | Bag Type: courier bag |
Voltage: 380V 50Hz | Weight: 6000 KG |
Certification: ISO 9001 |
Packaging: wooden pallet, stretch film package | Transportation: Ocean |
Place of Origin: China | Supply Ability: 5 Set/Sets per Month |
Certificate: CE | Payment Type: L/C,T/T |
product name:
|
Corrugated Paper Bag Making Machine
|
Max. speed:
|
70pcs/min
|
Maximum bag length (bag width)
|
500mm
|
Effective unwinding width
|
1250mm
|
Material:
|
kraft paper
|
Effective unwinding diameter
|
1200mm
|
Mechanical weight
|
6000KG
|
Dimensions
|
19000mm/2600mm/2300mm(L/W/H)
|
Power backup
|
30KW
|
Wenzhou Zhengding Packaging Machinery Co.,Ltd is a professional technical enterprise who devote to R&D and manufacture packaing equipment. The company has 24 years history and we have over 10 years experience in this field. We try our best to provide quality products and best service to our clients in the spirit ofuseeking for better. There are over 30 kinds of machines for your selection, such as bubble shockproof bag making machine, stationery machine, high precision cross cutting machine and slitting machine etc. The R&D department in our company can customize high-tech machine which can meet your needs.
For a long time, we keep stable cooperation business relationships with many high quality enterprise in this industry which make us have deeper understanding of packaging and stationery industry and keep high sensitivity to the technical innovation in this industry. We will do best to help improve your career with full sincere.
